ACCORD 63′ Semi-trailer Animation
53′ Semi 90 degree turn
Accord 63′ Semi
Accord 63′ 105′ Radius
NZR Double trailer configurations
33′ Double “D” single axle drive tractor
33′ Double “D” Closed with pusher lift axle
Tractor SA c/w e-Pusher Axle
C-train Universal dolly & hitch system
B-Train Twin Drawbar Dolly
Authentication of invention has become an art form and subject to the wiles of patent attorneys and research consultants. Herein we will attempt to give examples of how my inventions have fallen prey to some these charlatans.
They say to be copied is the greatest form of flattery and endorsement validating of ones ideas. This may be so and may nevertheless insult the integrity of the product. However the greatest insult remains when low-life infringers use the integrity of research papers to disguise their fraud by co-opting research consultants with their petty larceny.
Understanding plagiarism we know the truth full well; that infringers will be out there assisted by rogue patent attorneys and not being candid with clients. What they have learned from software industry programmers, it is faster, Simpler to Steal, Plagiarize products research by perusing USPTO and CPO patent publications. Some even have stooped to add the true inventor to publications in order to feign legitimacy. That art of the plagiarist continues unabated, to draw heat from gaps in the dissemination of knowledge and is a sad commentary. In this low tech, yet fertile field of truck/trailer industry, discoveries have lain wait for legitimate licensing only to find, again and again, organizations with a different moral code. As petty larceny, it can only constrain industry progress for the want of integrity. These charlatan understand progress comes at a price which they refuse to pay, their unsuspecting customers duped into participating.
N. R. CURRY
Note: NZR products require specific design criterion and analysis of DoT rules for application in each Country. Please contact NZR for best design solutions for your area.
Goal is to assist industry transition toward a genuine integration of tractor and trailer as follows:
Truck/tractor and Semi-trailer design prototyping has become something of an art form with NZR; not the least of which has been the recent availability of e-axles. Indeed the new e-tractors are exciting yet still exhibit the same characteristics, jackknife, GAP and poor maneuverability. They overlook an opportunity for inter-connectivity, lot’s of low hanging fruit in this area. With the d-Train 5th Wheel Compound Hitch on offer, substantial reliability and productivity gains are possible.
The d-Train ACCORD Semi-trailer is an example of this and could open the door to opportunities previously not thought possible. A change toward connectivity is a real opportunity for industry.
Time to see through the haze, to be inspired
Integration:
The next generation 2020 power unit design must make provision for integrating, both truck and trailer. Present day truck/tractor Semi-trailer design is mostly, straight out of a Norman Rockwell painting. Tesla, Nikola et al, now e-battery power are a great innovation. However calling these vehicles the next generation is a bit of a stretch. GHG notwithstanding, what a missed opportunity for the trailer innovation and reliability. The Mega-bucks being spent on e-trucks, the Supertruck l & ll R&D project and others are but examples. What is needed is integration of the truck and trailer connection. And to proffer this integration as a priority. OEM integration using SAE standards to include all class V, Vl, Vll, and Vlll Diesel and e-Truck, models are candidates.
New Truck Chassis c/w d-Train compound hitch
Fueling the future
EPA has done a good job in energizing concerns for reduced fuel consumption and mitigation of GHG the overall move away from fossil fuels encouraging. Nevertheless, the hubbub around Supertruck ll R&D continues to overlook integration. Here are two good examples using the patented ACCORD-Stinger Semi-trailer and e-Axle for no-jackknife mechanical control. Closing the “GAP” improves fuel economy, reduces e-demand, improves operating ratio. The no-full jackknife feature of the ACCORD-Semi is a plus when considering these expensive new technology tractors.
Example: e-ACCORD 3 Axle and Hyudai HDC-6 Hydrogen

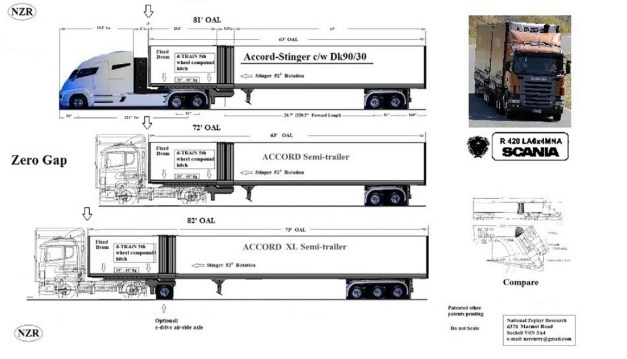

Example: ACCORD Semi-Trailers Nikola e-1
105′ Radius ACCORD-Stinger 90′ Turn 63′ Semi 90′ Turn 53′ Semi
COMPARE: NZR ACCORD-Stinger 63′ with Standard 53′ Semi-trailer
NZR ACCORD-Stinger 53′ & 63′ (5,6) & (7) Axle US – Leland James, Founder of Freightliner Corp NZR – Improving Capacity ACCORD-Stinger 2018
Truck OEM’s benefit from concept: KW, Pete, Volvo, Ftlnr, W/Star, Mack, Navistar, etc
Trailer OEM’s benefit from concept: Gt. Dane, Stoughton, Wabash, Utility, CIMC, Monon Vanguard, etc
All tractors may adapt to ACCORD Technology using Patented d-TRAiN© 5th Wheel Compound Hitch tractor Package
North American and EU Configurations
10.4.1 Tractor-Trailer Scale-Model Testing The NRC 9m x 9m Wind Tunnel provides the ability to test quarter to half scale tractor-trailer models at representative Reynolds numbers, with ground-effect simulation and, with some additional effort, representative turbulence conditions.
Recently, a correlation study between a half-scale tractor-trailer model and its full-scale equivalent was performed in the NRC 9m x 9m Wind Tunnel. After correcting for blockage and wall-interference effects, the results of the study showed good correlation between the two models and identified the importance of proper ground simulation for some changes in model configuration.
The results indicated the importance of ground-effect simulation for assessing the effects of drag reduction technologies located in ground proximity. The study was a collaboration between NRC-IAR and a truck manufacturer and has not yet been published. Dissemination of the results into the public literature will occur within the next year.
This study provides confidence that scale-model testing at representative Reynolds numbers will be efficient and provide adequate guidance for the design and evaluation of drag reduction technologies. The inclusion of representative turbulence and wind-profile conditions (see Section 11.3) would provide a reliable and systematic approach to the evaluation of tractor-trailer aerodynamic performance. Front-surface modifications will be the most susceptible to Reynolds-number effects and therefore full-scale Reynolds number conditions are the ideal situation for examining such modifications.
Testing of a half-scale model in the 9m x 9m Wind Tunnel can achieve full-scale Reynolds number conditions with the ground effect simulation system. For this scale, the wheels of the model straddle the edges of the 1 m wide ground-plane belt. Although this situation is better than a fixed ground plane, it is not ideal for examining under-body and rotating-wheel effects. Also, at half scale the trailer extends beyond the length of the NRC ground-plane belt, which is only 5.3 m long. At quarter scale, a full-length model (with equivalent 53 ft trailer) will sit within the confines of the ground-plane belt (belt equivalent to 21.2 m/70 ft scale) and will therefore allow fully-representative under-body simulation. Such a model could also allow the moving belt to drive the wheels and provide an improved simulation of the wheel-road interactions (further discussed in Section 11.3.1).
The Reynolds number for this situation would be half of the full-scale conditions, but underbody flows are likely to be less susceptible to Reynolds-number effects due to the turbulent-wake-like characteristics of much of this flow. As noted above, it is primarily front surfaces that require the full-scale Reynolds numbers associated with a half-scale model. Although the large range of second-generation drag-reduction devices affect the gap and trailer flows, it is possible that insufficient Reynolds number simulation of the fore-body may have an effect on the downstream flows.
The arguments above lead to the conclusion that there is no optimum model scale for testing tractor trailers in the 9 m x 9 m Wind Tunnel with ground effect simulation. Quarter-scale models are the most appropriate for testing drag-reduction devices on a full-length trailer model, while properly simulating the under-body flows and ground. Half-scale models will provide adequate Reynolds-number simulation, important for the tractor fore-body flows but will not provide full under-body ground effect simulation. Before an appropriate model scale is chosen for such studies, it will be important to understand the implications of this trade-off. Section 10.6 provides recommendations for such a trade-off study.
